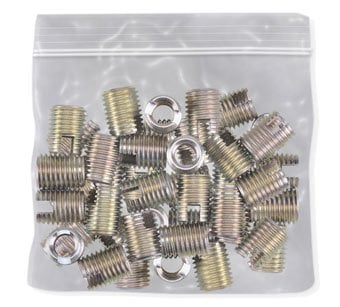

10G x 24 Case Hardened Tapsert
| Part Number: | 3932-10GX10 |
| Brand: | Tapsert |
| Barcode: | 9326518135258 |
| Drill Diameter (inch): | 7.6 |
| External Thread (mm): | 8.00 X 1.00 |
| Insert Length (mm): | 10 |
| Internal Thread Diameter (inch): | 10G |
| Pitch (tpi): | 24 |
| TPI: | 24 |
About this item:
- 10G x 24 Case Hardened Tapsert
- Unified National Coarse (UNC) Hardened Tapsert - Yellow Zinc Passivated
- Tapserts are self cutting threaded inserts that feature both external and internal threads.
- They are driven into a pre-formed or pre-drilled retaining hole and the cutting slots (or cutting bores) effectively tap the hole as the insert is wound into the parent material.
- Tapserts are ideal for use in low shear strength materials (such as alloys, plastics and castings) which require threaded seats with high load capacity and wear resistance.
- High pull-out strength and high load capacity in low shear strength materials.
- Wear free, vibration resistant screw joint.
- Pre-cast or pre-drilled holes with standard tolerance.
- No requirement for expensive thread tapping tools.
- Retains and captures chips from installation in chipping reservoirs.
- Available in Case Hardened Steel and Stainless Steel.
