All Products ➞ Threaded Inserts ➞ PowerCoil® ➞ Workshop Kits

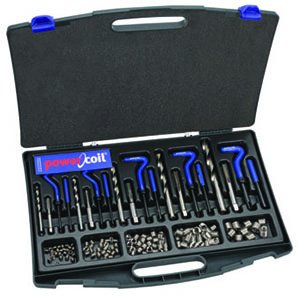

1/4 - 1/2" BSF Thread Repair Workshop Kit
| Part Number: | 3530-WK1 |
| Brand: | PowerCoil |
| Barcode: | 9326518076803 |
| Description: | BSF 1/4" - BSF 1/2" |
About this item:
- 1/4 - 1/2" BSF Thread Repair Workshop Kit
- 1/4 - 1/2" BSF Thread Repair Workshop Kit
- PowerCoil Wire Thread Inserts strengthen tapped threads in light weight parent materials such as aluminium. They are helically wound inserts made from high quality chromium nickel stainless steel with a diamond shaped cross section.
- PowerCoil inserts are used in OEM applications in a wide range of industry sectors including aerospace, automotive, military and electronics.
- They are inexpensive when compared to other inserts and simple to install, yet are extremely tough, wear resistant and corrosion resistant.
- Most importantly, PowerCoil inserts allow the stress loading from the bolt or similar threaded part to be more evenly distributed over the threads in the parent material.
Components:
| Part Number | Title | Quantity | |
|---|---|---|---|
| 2007-6.60 | 6.6mm Bright Finish HSS Jobber Drill | 1 | |
| 2007-8.30 | 8.3mm Bright Finish HSS Jobber Drill | 1 | |
| 2007-9.90 | 9.9mm Bright Finish HSS Jobber Drill | 1 | |
| 2007-11.50 | 11.5mm Bright Finish HSS Jobber Drill | 1 | |
| 2007-13.00 | 13mm Bright Finish HSS Jobber Drill | 1 | |
| 3530-1/4I | 1/4" x 26 STI BSF Intermediate HSS Tap | 1 | |
| 3530-5/16I | 5/16" x 22 STI BSF Intermediate HSS Tap | 1 | |
| 3530-3/8I | 3/8" x 20 STI BSF Intermediate HSS Tap | 1 | |
| 3530-7/16I | 7/16" x 18 STI BSF Intermediate HSS Tap | 1 | |
| 3530-1/2I | 1/2" x 16 STI BSF Intermediate HSS Tap | 1 | |
| 3500-HIT9 | HIT9 PowerCoil Hand Installation Tool | 1 | |
| 3500-HIT11 | HIT11 PowerCoil Hand Installation Tool | 1 | |
| 3500-HIT13 | HIT13 PowerCoil Hand Installation Tool | 1 | |
| 3500-HIT14 | HIT14 PowerCoil Hand Installation Tool | 1 | |
| 3500-HIT15 | HIT15 PowerCoil Hand Installation Tool | 1 | |
| 3500-TB9 | TB9 PowerCoil Tang Break Tool | 1 | |
| 3500-TB11 | TB11 PowerCoil Tang Break Tool | 1 | |
| 3500-TB12 | TB12 PowerCoil Tang Break Tool | 1 | |
| 3500-TB14 | TB14 PowerCoil Tang Break Tool | 1 | |
| 3500-TB15 | TB15 PowerCoil Tang Break Tool | 1 | |
| 3530-1/4X1.5D | 1/4" x 26 x 1.5D BSF Wire Thread Insert | 25 | |
| 3530-5/16X1.5D | 5/16" x 22 x 1.5D BSF Wire Thread Insert | 25 | |
| 3530-3/8X1.5D | 3/8" x 20 x 1.5D BSF Wire Thread Insert | 25 | |
| 3530-7/16X1.5D | 7/16" x 18 x 1.5D BSF Wire Thread Insert | 10 | |
| 3530-1/2X1.5D | 1/2" x 16 x 1.5D BSF Wire Thread Insert | 10 |
