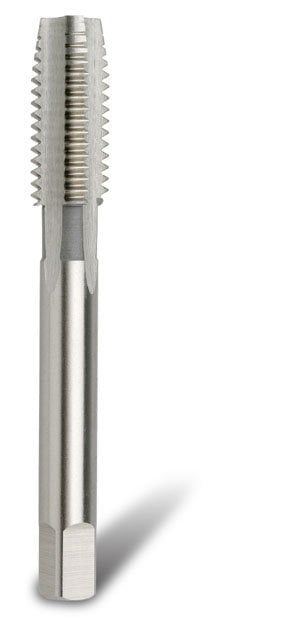

6G x 32 STI UNC Intermediate HSS Tap

Part Number:3532-6GI
Brand:PowerCoil
Barcode:9326518074366
Diameter (inch):6G
Lead:Intermediate
Length (mm):58
Pitch (tpi):32
TPI:32

About this item:
  • 6G x 32 STI UNC Intermediate HSS Tap
  • Unified National Coarse (UNC)
  • HSS Intermediate Lead 3B Tolerance Screw Thread Insert (STI) Tap.
  • PowerCoil wire thread inserts are installed into oversize tapped holes.
  • Only PowerCoil STI (Screw Thread Insert) Taps are suitable for use with PowerCoil Wire Thread Inserts.
  • STI Taps have a larger diameter, than standard taps, but the same pitch to accommodate the wire thread insert.
  • Once the insert is installed in the tapped hole it creates the desired internal thread tolerance for the installed bolt or stud.
