All Products  ➞ Threaded Inserts ➞ PowerCoil® ➞ Repair Kits ➞ Spark Plug

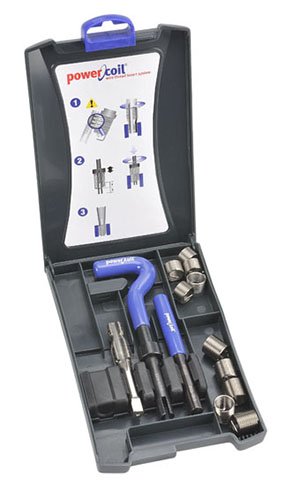

M10 x 1.0 x 1/2" MF Spark Plug PowerCoil Thread Repair Kit

Part Number:3522-10.00K
Brand:PowerCoil
Barcode:9326518076377
Insert Qty:5+5
Installed Length (inch):1/2 & 0.339
Internal Thread Diameter (mm):10
Pitch (mm):1
Tapping Drill Included:Not Required

About this item:
  • PowerCoil M10 x 1.0 x 1/2" Metric Fine Spark Plug Thread Repair Kit
  • PowerCoil Wire Thread Inserts are used to repair damaged or worn out threads, PowerCoil Wire Thread Inserts can also be used to create new stronger threads in original equipment.
  • They provide a permanent, corrosion and wear resistant internal thread which is usually stronger than the original parent material thread.
  • PowerCoil wire thread inserts are manufactured from precision profiled diamond shaped stainless steel wire and formed into a helical spiral.
  • They provide high strength internal threads that resist the effects of temperature and corrosion.
  • Their unique design ensures superior threads whose compound performance cannot be reproduced by any other single fastening method.
  • They are much lighter and less expensive than any other equivalent type of thread insert and because of their compact size they can generally be incorporated into existing designs where no previous provision has been made.
  • PowerCoil kits contain the wire thread inserts, tap, installation tool, and, in many cases, the tapping drill and break off tool needed for particular sizes of PowerCoil insert.
Components:
Part NumberTitleQuantity
3520-10.00PN 10 x 1.5mm STI Pilot Nose HSS Tap 1
3500-HIT13 HIT13 PowerCoil Hand Installation Tool 1
3500-TB13 TB13 PowerCoil Tang Break Tool 1
3522-10.00X1/2 10 x 1mm x 1/2" MF Spark Plug Wire Thread Insert 5
3522-10.00X.339 10 x 1mm x .339" MF Spark Plug Wire Thread Insert 5
