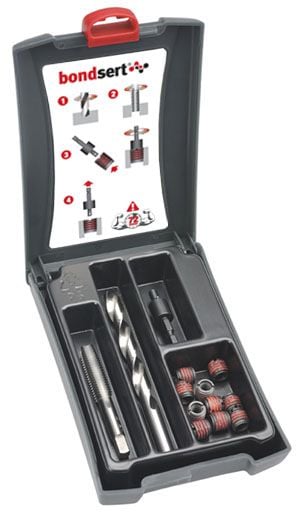

1/4" x 28 UNF CS Thin Wall Bondsert Kit
| Part Number: | 3334-1/4TWK |
| Brand: | Bondsert |
| Barcode: | 9326518153818 |
| Kit Type: | 1/4-28 Carbon Steel Thin Wall Insert Kit - includes Drill, Tap, Drive Tool and Inserts |
| Insert Material: | C12L14 Carbon Steel |
| External Thread: | 3/8-16 |
| Internal Thread: | 1/4-28 |
Components:
| Part Number | Quantity | |
|---|---|---|
| 3334-1/4TW | 10 | |
| 3032-3/8I | 1 | |
| 3632-Q | 1 | |
| 3300-3 | 1 |
About this item:
- 1/4" x 28 UNF CS Thin Wall Bondsert Kit
- Bondsert Threaded Inserts provide a stronger fastener assembly in soft materials such as aluminium, magnesium and even cast iron.
- They can be used for repairing stripped threads, and for use in creating stronger threads in original equipment.
- External threads are manufactured with standard size and pitch to permit the use of standard drills and taps.
- The inserts can be installed with a screwdriver, bolt/jam nut, or power drive tool.
- Bondsert Threaded Inserts are vibration resistant.
- Within minutes of installation, the micro-encapsulated adhesive begins to set, and the newly installed inserts are fastener-ready within 5 minutes and will not back out.
- The adhesive seals against liquids and gases up to 6,000 psi when fully cured after 72 hours.
